Arexal®

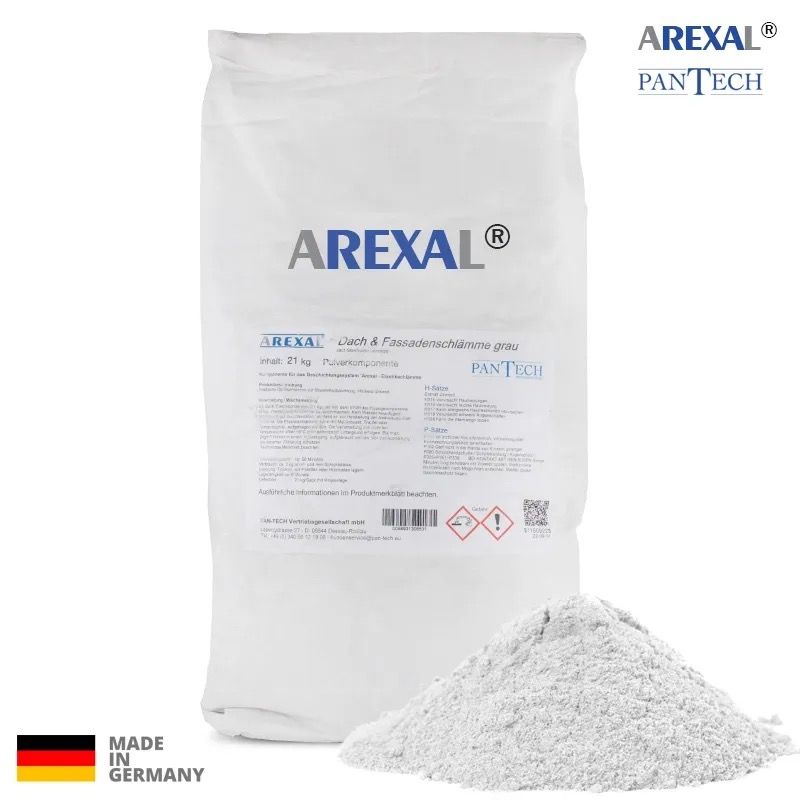

AREXAL® Roof & Facade Slurry mixed with fiberglass for high stability, specifically designed for flat roofs or facades. (To be processed exclusively in combination with AREXAL® - Additional Component (liquid) ) When looking for a reliable sealing solution for your construction projects, you should make no compromises. We introduce to you AREXAL® Roof & Facade Slurry, the ultimate solution for all your sealing requirements. Two-component systemAREXAL® Roof & Facade Slurry is not just a product, but an innovative combination of liquid plastic (AREXAL®-Additional Component, Item No. AX1008) and the elastic mortar shown here (Item No. AX1036). This duo creates a building material that is permanently elastic, flexible, and especially versatile in its application. It adheres effortlessly to a variety of substrates, including glass, metal, wood, plastic, bitumen, and mineral building materials. Versatile applications: Surface sealing: Use AREXAL® Roof & Facade Slurry for flexible sealing against ground moisture, surface and seepage water, especially on stress-prone substrates. Roof sealing: With the liquid AREXAL® Additional Component, you can effectively and permanently seal flat roofs made of bitumen, corrugated sheet metal, or asbestos. Building sealing: It is excellent for sealing exterior basement walls, whether made of concrete, brick, or bitumen, as well as for bathroom sealings, gypsum boards, concrete floor slabs, balconies, and terraces. Joint bonding: It is also ideal for bonding flexible joint tapes. Plaster substrate: It serves as the perfect substrate for plasters of mortar groups PI, PH, and PHI, as well as for tiles and panels. It remains permeable to water vapor pressure while simultaneously providing protection against carbon dioxide. Quality and Safety:The product impresses with its outstanding adhesion to cleaned concrete surfaces and is waterproof. Furthermore, it meets the standards as WHG ¨19 coating against transformer and light heating oil. Conclusion:AREXAL® Roof & Facade Slurry convinces with its high efficiency, flexibility, and versatility. It is the answer to all your sealing questions and a worthwhile investment for the longevity and safety of your structures. Do not compromise when it comes to quality and reliability. Choose AREXAL® Roof & Facade Slurry.

AREXAL® - Feinputz weiss (kein Sanierputz) Filz- oder Glättputz-Werktrockenmörtel zur Oberflächengestaltung im Innen- und Außenbereich. Maximal 4mm Auftrag auf den bestehenden Putz. Kein Grundputz. AREXAL® - Feinputz weiss ist ein gebrauchsfertiger, weißer Werktrockenmörtel der Mörtelgruppe CSI-CS3 gemäß DIN EN998, zur Aufbereitung eines porenhydrophoben, diffusionsfähigen Sanierfeinputzes für die Altbausanierung. Anwendungsgebiete AREXAL® - Feinputz weiss dient zur Herstellung besonders feiner Putzoberflächen auf nahezu allen mineralischen Unterputzen der Mörtelgruppen PII und PIII. Aufgrund seiner hervorragenden Diffusionsfähigkeit eignet sich AREXAL® - Feinputz weiss besonders auf allen AREXAL® Sanierputzen. Er wird idealerweise für die Oberflächengestaltung im Innen- und Außenbereich eingesetzt. Wirkungsweise/Eigenschaften Kalk-Zement-Putz (Mörtelgruppe PII) geringer Rissanfälligkeit und günstigem Festigkeitsverhältnis Hydrophober Porenputz mit hoher Wasserdampfdiffusion Kapillar nahezu inaktiv, transportiert weder Wasser noch Salze Schafft eine salzfreie und trockene Oberfläche (keine Kondenswasserbildung) Verhindert dauerhaft Salzausblühungen, Farb- und Putzabsprengungen Absolut frost- und salzbeständig Optimal als Deckputz auf allen Sanierputzen aufgrund seiner Diffusionsfähigkeit Passt Sanierputze aufgrund seiner feinkörnigen Oberfläche hervorragend an die Struktur angrenzender glatter Altputze an Geeignet für maschinelle Verarbeitung, wird jedoch in der Regel von Hand aufgezogen Technische Daten Materialbasis mineralische Bindemittel und Zuschläge Farbe weiß Rohdichte (ausgehärtet) ca. 1,35 kg/l Verarbeitungszeit 25 – 40 Minuten Verarbeitungstemperatur (Baustofftemperatur) nicht unter 5°C Verbrauch ca. 2,5 kg/m² je 2 mm Schichtstärke Mindestputzdicke 2 mm Maximalputzdicke 5 mm Dicke cm Lambda W/mK Wasserdampfdiffusion 0,5 0,320 8 Lagerung trocken, auf Paletten oder Holzrosten lagern Lagerfähigkeit max. 6 Monate Lieferform Sack á 25 kg Verarbeitung AREXAL® - Feinputz weiss wird innerhalb von 24 Stunden nach Aufbringen der letzten Putzlage aufgebracht. Ansonsten ist der Untergrund mit einem Nagelbrett etwas aufzurauen. Für alte Untergründe ist zusätzlich gründliches Entstauben erforderlich. Der Feinputzmörtel wird dünn mit der Traufel aufgezogen und nach dem Erstarren unter geringer Wasserzugabe mit einem Schwammbrett verrieben. Die Putzdicke sollte sich zwischen 2-5 mm bewegen. Aufgrund der feinkörnigen Oberfläche von AREXAL® - Feinputz weiss lässt sich die Struktur optimal an glatten Altputz anpassen. Anstrichsysteme Anstriche auf AREXAL® - Feinputz weiss müssen hochdiffusionsfähig und auf mineralischer Basis sein. Unterschiedliche Wasseraufnahme kann zu Farbton- und Hydrophobierungsunterschieden führen, daher wird eine Grundierung mit Ätzflüssigkeit und/oder Silikatgrund empfohlen. Sicherheitsratschläge AREXAL® - Feinputz weiss unterliegt nicht der GefStoffV. Jedoch wirkt AREXAL® - Feinputz weiss in verarbeitungsfähigem Zustand aufgrund seiner Alkalität ätzend. Schutzmaßnahmen und Unfallverhütungsvorschriften der Chemischen Berufsgenossenschaft sind einzuhalten. Bei Augenkontakt gründlich mit Wasser spülen und Arzt konsultieren. Bei Hautkontakt sofort mit viel Wasser abwaschen. Schutzkleidung, Schutzhandschuhe und Schutzbrille tragen. Größere Mengen sollten nicht in Grund- oder Oberflächenwasser gelangen. Weitere Informationen erhalten Sie auf Anfrage.

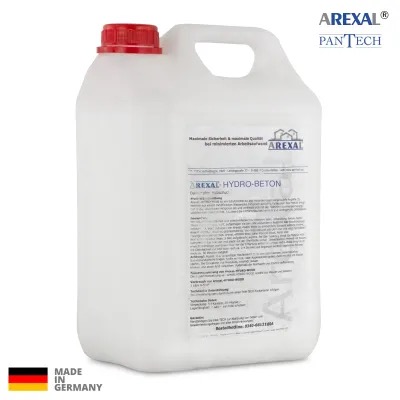

AREXAL® Hydro Concrete is a permanent impregnation penetrating up to 20 cm deep (No chemicals or chlorides) - lasting protection for your structure What is Hydrophobization? Hydrophobization is the prevention of water transport in the capillary system of concrete for all open-pored cementitious or mineral surfaces, both inside and outside. AREXAL® Hydro Concrete forms a highly water- and dirt-repellent surface that is very easy to clean. It prevents moss, fungus, or algae growth. It protects the material against efflorescence, air pollution, and UV radiation. Furthermore, it provides transparent protection on all types of walls / concrete surfaces and maintains the natural look. AREXAL® Hydro Concrete is colorless, odorless, solvent-free, non-flammable, and non-toxic. It does not leave a film layer but a clear and natural surface. In the commercial sector, AREXAL® Hydro Concrete is most often used for natural surfaces and is repellent against water, all types of liquids (oil, grease, red wine, coffee, etc.), simple paint, and environmental influences. Old (untreated) stones and bricks regain their original appearance, become impermeable to water, and are permanently protected. In addition, "drying out" and protection against penetrating rain reduce heating and energy costs. Typical areas are walls, floors, ceilings, chimneys, roof tiles, patios, flat roofs, and swimming pools made of concrete. How does AREXAL® Hydro Concrete work AREXAL® Hydro Concrete impregnates all open-pored cementitious or mineral surfaces, both inside and outside. It includes any kind of concrete, screed, brick, clay, clinker, and various stones (e.g., sandstone, terracotta, brick, etc.). AREXAL® Hydro Concrete forms a highly water- and dirt-repellent surface, preventing moss, fungus, or algae growth and is very easy to clean. The surface treated with AREXAL® Hydro Concrete is protected from salt efflorescence, air pollution, and UV rays. Advantages easy and trouble-free to process odor-neutral environmentally friendly breathable acid-resistant one-time treatment longer lifespan reduced maintenance needs dust-binding easier cleaning Properties colorless, odorless, solvent-free, non-flammable, and non-toxic leaves no film layer but a transparent, clear, and natural surface water-soluble potassium methylsilanetriolate with organic catalyst, non-film forming, highly capillary-active, non-flammable impregnates mineral building materials up to a depth of 200 mm (with one to max. two applications, wet on wet) and hydrophobizes the surface Material Pure natural product based on water-soluble potassium methylsilanetriolate with organic catalyst, ready to use. Application Before use, turn the container upside down and shake well. AREXAL® Hydro Concrete is most easily and evenly applied with a standard pressure sprayer. For small areas, a roller, brush, or sponge can also be used. To avoid puddling, the surface to be treated should be thinly and evenly wetted. AREXAL® Hydro Concrete must not be diluted and only transferred into unused containers. As a rule, one treatment is sufficient. For highly absorbent surfaces, a further treatment – wet on wet – is recommended. Caution AREXAL® Hydro Concrete is hydrophobic, therefore, do not apply it to surfaces that will be treated with other materials. Applying paint, etc., is not possible after treatment with AREXAL® Hydro Concrete. Use Basically, AREXAL® Hydro Concrete is a surface sealant with depth effect for all types of concrete, stone types (such as brick, sand-lime brick, granite, slate, etc.), cement plaster, and unglazed tiles. It can be used on these materials if the surfaces are to be completely sealed and protected against water and acids, but not further treated or painted. The range of applications is very broad. AREXAL® Hydro Concrete does not work on treated surfaces and materials. Please check carefully whether your concrete, stone, or plaster, etc., has been chemically treated. AREXAL® Hydro Concrete can only be used on natural concrete, stones, tiles, or bricks. In rare cases, some newer concretes and stones have been treated with additives, which can cause a color deviation. If unsure, apply AREXAL® Hydro Concrete to an inconspicuous area for testing and wait 2 days. Suitable Surfaces Brick facades (sealing, stone restoration, energy cost reduction, joint sealing) - e.g., in monument restoration Unsealed stone floors (sand-lime brick, sandstone, granite, slate, terracotta, basalt, etc.) Kitchen countertops, bathroom shelves, window sills made of unsealed stone Non-glazed tiles (e.g., terracotta, granite, slate, etc.) Exterior walls and masonry made of natural-looking stones Mineral plasters (without chemical or water-repellent substances) Garage floors with exposed concrete look (against oil stains, etc.) Roof tiles (unglazed made of clay or concrete) - are sealed (replace broken ones first!) Swimming pools made of exposed concrete (treat with AREXAL® Hydro Concrete beforehand) Sealing of joints in showers, wet rooms, swimming pools Chimneys (made of brick or other stone types with natural look) Screed floors (e.g., as industrial floors, etc.) Flat roofs (treat with AREXAL® Hydro Concrete beforehand) Eternit panels (e.g., as house cladding or corrugated eternit panels for the roof) Fountains and garden facilities made of concrete and stone Terracotta flower pots (retain their natural look and become frost-proof)

AREXAL®-Hydro-Ziegel is a permanent impregnation that penetrates up to 20 cm deep (No chemicals or chlorides) - providing lasting protection for your building. What is hydrophobization? Hydrophobization is the prevention of water transport in the capillary system of concrete for all open-pored cementitious or mineral surfaces, both interior and exterior. AREXAL®-Hydro-Ziegel forms a highly water- and dirt-repellent surface that is very easy to clean. It prevents moss, fungus, or algae infestation. It protects the material against salt efflorescence, air pollution, and UV radiation. Furthermore, it offers transparent protection on all types of walls / concrete surfaces while maintaining the natural appearance. AREXAL®-Hydro-Ziegel is colorless, odorless, solvent-free, non-flammable, and non-toxic. It leaves no film layer, but a clear and natural surface. In the commercial sector, AREXAL®-Hydro-Ziegel is most frequently used for natural surfaces and acts as a repellent against water, all kinds of liquids (oil, grease, red wine, coffee, etc.), simple paint, and environmental influences. Old (untreated) stones and bricks regain their original appearance, become waterproof and permanently protected. Additionally, "drying out" and protection against penetrating rain lowers heating and energy costs. Typical areas of use are walls, floors, ceilings, chimneys, roof tiles, and patios. How does AREXAL®-Hydro-Concrete work AREXAL®-Hydro-Ziegel impregnates all open-pored cementitious or mineral surfaces, both inside and outside. This includes all types of concrete, screed, brick, clay, clinker, as well as various stones (e.g., sandstone, terracotta, brick, etc.). AREXAL®-Hydro-Ziegel forms a highly water- and dirt-repellent surface, preventing moss, fungus, or algae infestation and is very easy to clean. The surface treated with AREXAL®-Hydro-Ziegel is protected against salt efflorescence, air pollution, and UV rays. Advantages easy and hassle-free to apply odorless environmentally friendly breathable acid-resistant single treatment longer lifespan reduced maintenance dust-binding easier cleaning Properties colorless, odorless, solvent-free, non-flammable, and non-toxic leaves no film layer, but a transparent, clear, and natural surface water-soluble potassium methylsilanetriolate with organic catalyst, non-film-forming, highly capillary-active, non-flammable impregnates mineral building materials up to a depth of 60 mm (with one to max. two applications, wet on wet) and hydrophobizes the surface pure natural product based on water-soluble potassium methylsilanetriolate with organic catalyst, ready to use Application Before use, turn the container upside down and shake well. ArexA-Hydro-Ziegel is most evenly and easily applied with a standard pressure sprayer. For small areas, a roller, brush, or sponge can also be used. To avoid puddling, the surface to be treated should be thinly and evenly wetted. AREXAL®-Hydro-Ziegel should not be diluted and only transferred into unused containers. Generally, one treatment is sufficient. For highly absorbent surfaces, an additional treatment – wet on wet – is recommended. Note: AREXAL®-Hydro-Ziegel is hydrophobic. Therefore, do not apply to surfaces that are to be treated with further materials. Painting, etc., is not possible after treatment with AREXAL®-Hydro-Ziegel. Usage Basically, AREXAL®-Hydro-Concrete is a surface sealant with depth effect for all types of concrete, stone types (such as brick, sand-lime brick, granite, slate, etc.), clinker, and other stones. It can be used on these materials when the surfaces are to be completely sealed and protected against water and acid, but not further treated or painted. The range of application possibilities is very wide, here are some examples where AREXAL®-Hydro-Ziegel has been successfully applied. AREXAL®-Hydro-Ziegel does not work on treated surfaces and materials. Please check carefully whether your stones, etc., have been chemically treated. AREXAL®-Hydro-Ziegel can only be used on natural stones or bricks. In rare cases, some newer stones have been treated with additives, which can cause color deviation. If you are unsure, apply AREXAL-Hydro-Ziegel to an inconspicuous area for testing and wait 2 days. Suitable surfaces Brick facades (sealing, stone restoration, energy cost reduction, joint sealing) - e.g., in monument restoration unsealed stone floors (sand-lime brick, sandstone, granite, slate, terracotta, basalt, etc.) Kitchen countertops, bathroom shelves, window sills made of unsealed stone non-glazed tiles (e.g., terracotta, granite, slate, etc.) Exterior walls and masonry made of stones with a natural look Mineral plasters (without chemical or water-repellent substances) Roof tiles (unglazed, made of clay or concrete) – sealed (replace broken ones first!) Sealing of joints in showers, wet rooms Chimney (made of brick or other stone types with a natural look) Eternit panels (e.g., as house cladding or corrugated Eternit panels for the roof) Stone fountains

AREXAL®️-HYDRO-Wood is a long-lasting protection for wood structures, penetrating up to 2 cm deep into the wood. It uses no environmentally harmful chemicals or chlorides. This product protects wood from various harmful influences and consists of modified silicon dioxide with special catalysts. It penetrates deeply into the natural pores of the wood and forms a protective barrier that reduces the flammability of the wood and extends its lifespan. Advantages light and easy to apply odorless  environmentally friendly breathable acid resistant single treatment  longer lifespan reduced maintenance required dust binding easier cleaning Usage Instructions Normal wood surfaces and untreated wood require no preparation. AREXAL®-Hydro-Wood must be applied at temperatures above +5°C. All existing paints or coatings must be completely removed to allow the penetration of AREXAL®-Hydro-Wood. Safety Avoid eye and prolonged skin contact wear protective gloves as a precaution keep even natural impregnating agents out of reach of children

Double-acting injection fluid for horizontal barriers against rising dampness - "solvent-free"! Product Description AREXAL® Injection Plus is a low-viscosity liquid based on stabilized alkali silicate compounds with pronounced water-repellent properties for hydrophobic silicification of mineral building materials.- Consumption: 2.5L per linear meter Test Certificate Properties and application of AREXAL® Injection Plus from the Institute for Building Materials Dr. Günther Böttcher dated May 31, 1983, and Expert Report No. 69/93, Richard-Grün-Institute, Ratingen. Areas of Application For the production of subsequent horizontal barriers and surface seals in masonry and concrete against capillary penetrating or rising dampness. Mode of Action (Properties) Once introduced into the masonry, the first phase involves the separation of the silica gel from the silicate component. The drying effect achieved by reducing the capillary absorption capacity leads to further drying in the masonry cross-section, which in turn allows the effect of the hydrophobic component of AREXAL® Injection Plus to develop in the second phase. This hydrophobization of the masonry cross-section also prevents future moisture penetration when secondary capillaries form due to shrinkage. Application Instructions Impregnation method: To achieve the desired effect, please follow these steps: 1. Drill holes with a diameter of 13 mm at an angle of about 30 degrees to the wall. These holes should be arranged linearly or staggered and must not be more than 240 mm apart, as shown in the attached system diagram. Ensure that the drill hole stops about 60 mm before the end of the wall. 2. Remove the drill dust from the holes and then impregnate the holes several times with AREXAL® Injection Plus until the capillary structure is completely saturated. Do not wait more than 8 hours between each impregnation.TIP: Use a pressure sprayer, for example from "GLORIA", to fill the drill holes 3. Then close the drilled holes with special mortar (AREXAL® - Crystalline Sealing Slurry) by filling the holes.4. If the wall thickness exceeds 60 cm, it is necessary to perform the impregnation from both sides of the wall. Non-Pressure Injection Method Impregnation method: Create drill holes Ø 30 mm at an inclination angle of approx. 30°, linearly or staggered at a maximum distance of 12 cm (see system diagram). Blow out the drill dust and then impregnate several times with AREXAL® Injection Plus until the capillary structure is completely saturated. The waiting time between each impregnation should not exceed 8 hours. Then close the drill holes with special mortar (AREXAL® - Crystalline Sealing Slurry) (fill them). For wall thicknesses over 60 cm, impregnation from both sides of the wall is required. Create drill holes Ø 12 mm or 25mm at an inclination angle of approx. 25° linearly or staggered at a distance of 12 cm. Drill hole depth = wall thickness minus 5 cm (see system diagram). Blow out the drill dust - tension packers or injectors. Introduce AREXAL® Injection Plus using the injection method. The injection is carried out until the capillary structure is completely saturated, with each packer/injector being supplied with AREXAL® Injection Plus over an extended period. Then dismantle the packers/injectors and close the drill holes with AREXAL® crystalline sealing slurry (fill them). For cavities, two- or multi-shell masonry, a pre-injection (pre-filling) is necessary to obtain a compact structure. AREXAL® Injection Plus does not attack construction steel is non-flammable does not decompose The process is also suitable if the masonry is under hydrostatic pressure, but only in combination with AREXAL® products - crystalline sealing slurry as a rigid seal and drying of the masonry Cleaning of the tools and injection machines with water. Technical Data Material Base low-viscosity, highly hydrophobic aqueous silicate-silicone mixture Appearance reddish liquid Density 1.09 kg/l pH Value 12.5 (highly alkaline) Consumption depending on the absorbency of the building material, guideline 1.2–2.2 l per 10 cm wall thickness and running meter or approx. 12–22 l/m2 masonry cross-section Storage frost-free Shelf Life 1 year in unopened containers Delivery Form in 22-kg plastic containers or 220 kg steel drum Safety Advice Due to its alkalinity, AREXAL® Injection Plus is highly corrosive. The prescribed safety measures of the chemical professional association must be strictly followed. Work with gloves and safety glasses. Avoid skin contact with the product. To better protect the hands, apply a skin protection cream. Immediately rinse material splashes on the skin and in the eye with plenty of water and then seek medical attention immediately. For further questions, please contact our support! More Product Information Data Sheet Download Safety Data Sheet Download

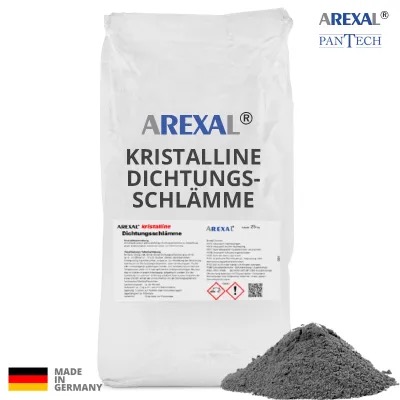

Our AREXAL® Crystalline Sealing Slurries are an innovative product for the permanent sealing of buildings and structures. As a manufacturer, we specialize in the production and development of high-quality, crystalline sealing slurries that meet the highest standards of quality and sustainability.Our Crystalline Sealing Slurries penetrate deeply into the masonry and form a permanent, crystalline structure there, effectively preventing the ingress of moisture. Our products are not only particularly effective, but also extremely environmentally friendly and very easy to process. Sand walls, mix, apply twice in succession, done. Product Description AREXAL® Sealing Slurry is a cement-bound surface sealing agent for sealing against soil moisture and pressurized water with deep action. With appropriate application thickness, AREXAL® Sealing Slurry can also be used as a waterproofing against pressurized water. AREXAL® Sealing Slurry is dense and particularly resistant to aggressive waters. AREXAL® -Sealing Slurry adheres excellently to almost all cleaned mineral substrates. Due to its high flexural tensile strength, the risk of cracking in AREXAL® Sealing Slurry is greatly reduced. In combination with the products, AREXAL® Pro-Concrete or AREXAL® Pro-Brick. a great depth of penetration is achieved with AREXAL® Sealing Slurry, encapsulating harmful salts through this process. Application Areas AREXAL® Sealing Slurry is a ready-to-use, hydraulically setting surface sealing agent. It is used for sealing against pressurized water and moisture for new and old buildings, indoors and outdoors, in damp rooms, swimming pools, water tanks, underground garages, tunnels, shafts, and similar. It is used for subsequent sealing of cellars, retaining walls, septic tanks, etc. Mode of Action (Properties) AREXAL® Sealing Slurry hardens into an impermeable surface seal. The sealing slurry is physiologically safe and can also be used in the potable water sector. Certificates Investigation report No. 7931 from the Technical University of Munich. Expert opinion from the State Hygiene Institute of the Free Hanseatic City of Bremen on the bacteriological behavior of AREXAL® Sealing Slurry. Examination report of the Swiss Federal Laboratories for Materials Science and Technology (EMPA) on the potable water compatibility of AREXAL® Sealing Slurry. Material Base Powder: mineral binders; aggregates and sealing additives Appearance light gray Processing Time approx. 30 minutes Strengths (after 28 days): Compressive Strength 40.0 N/mm2 Flexural Tensile Strength 6.0 N/mm2 Dynamic E-Modulus 2.59 x 104 N/mm2 Adhesive Tensile Strength 1.2 N/mm2 Diffusion Resistance Number μH2O = 25.4 Consumption approx. 2 kg per m2 and mm layer thickness Shelf Life approx. 6 months Delivery Form 25 kg/bag with poly liner Processing Instructions Sealing of masonry and concrete against soil moisture, pressurized, backwater, and groundwater. The walls should be constructed fully jointed. Voids in the concrete or defects in the masonry should be filled with mortar of mortar group II with the addition of AREXAL®-liquid X. Existing spacers, including star spreaders and wire ties, should be chiseled out 1.5–2 cm and patched with the same mortar. Before forming a fillet, the adhesive surfaces should be primed with AREXAL® Sealing Slurry. Concrete surfaces to be sealed must be open-pored and free from all contaminants such as formwork oil residues and cement remnants. AREXAL® Sealing Slurry should be diluted with water to a spatula or slurry consistency and applied in 2–3 coats or trowelings to the substrate. A new slurry coat should only be applied once the previous one has set. The total thickness of the slurry layer of at least 2 mm should be achieved. Highly absorbent substrates should be pre-moistened, and freshly applied slurry layers should be protected from sunlight and drafts. Subsequent Horizontal or Vertical Sealing Against Wall and Ground Moisture Loose plaster and paint coatings must be removed. AREXAL® Sealing Slurry is to be applied 1–2 times generously, with the impregnation being absorbed but not yet dried when the next impregnation is applied. In cases of strong moisture penetration, several more impregnations may be necessary at these locations. A bag of sealing slurry should be intensively mixed with about 5.5 l of water. The first coat with the ArexA Sealing Slurry should be applied on a pre-moistened surface. After that, the sealing slurry should be applied in a thinner consistency as a bonding coat. Consumption of Sealing Slurry for Concrete Sealings After the first layer has begun to set, the second coat with the sealing slurries in normal consistency should be applied. After the second layer of sealing slurry has set, at most after 6 hours, but no later than 3 days, the second layer of sealing slurry must be painted or troweled on. It must be ensured that voids are completely filled (no air inclusions). Depending on the moisture or water load, it may be necessary to apply another layer of slurry to achieve an impermeable sealing layer (consumption see diagram). For all intermediate layers, pre-moistening is required before applying the next layer. If a plaster system (e.g., AREXAL® Sanierputz white system) is to be applied to the AREXAL® Sealing Slurry, it should be done in one work step, right after sealing, as the sealing slurry no longer absorbs moisture and the renovation plaster is otherwise more difficult to apply. Safety Advice AREXAL® Sealing Slurry is corrosive due to its alkalinity! The protective measures ordered by the chemical professional association must be strictly observed. Work with gloves and safety goggles. Seek medical advice immediately after skin contact. For better protection of the hands, they should be creamed with a protective cream. Rinse material splashes on the skin and in the eye immediately with plenty of water. Technical Data AREXAL® Sealing Slurry is corrosive due to its alkalinity! The protective measures ordered by the chemical professional association must be strictly observed. Work with gloves and safety goggles. Seek medical advice immediately after skin contact. For better protection of the hands, they should be creamed with a protective cream. Rinse material splashes on the skin and in the eye immediately with plenty of water. Type for slope and stratum water for pressurized water up to 2m for pressurized water up to 4m Concrete Walls 4 kg/m2 5 kg/m2 6 kg/m2 Sub-Concrete 4 kg/m2 5 kg/m2 5–6 kg/m2 Reinforced Concrete Base 5 kg/m2 5 kg/m2 6 kg/m2 Water Tank 6 kg/m2 An outstanding top-class product for highest building sealing and lasting safety! 5 Star Class Product!

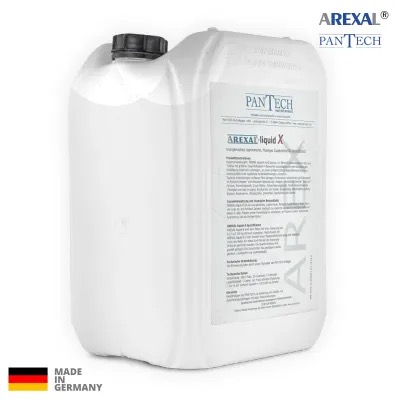

Inorganic copolymer, the only liquid additive with more than 60 years of expertise for concrete/screed In concrete according to DIN EN 206-1/DIN 1045-2, only concrete admixtures according to DIN EN 934-2 or with general building inspection approval may be used. Our product meets the DIN EN 934-2:2012 standard and is radon gas tight. Product Description Main uses: AREXAL®-liquid X is used to equip concrete for applications in structural and civil engineering with greater durability in structures historically prone to accelerated damage, to provide increased protection against corrosion of concrete steel, and to replace additional external waterproofing. The entire concrete is WD (waterproof) and not just WU (water-impermeable) (WU=DIN= Penetration depth allowed up to 5.0 cm). WU concrete is the abbreviation for water-impermeable concrete. This material and component, as long as there are no cracks or holes, secures the seal against water. It is important to know that in WU concrete, the water penetration depth to be demonstrated can be up to 5.0 cm. With AREXAL®-liquid X, the penetration depth under permanent water pressure of 7 bar is at most 1.8 cm! Typical applications include: heritage conservation, floor slabs, basement construction, highways, airport runways, parking garages, foundations, external walls and floor slabs in the ground, sewage treatment plants, underground vaults, tanks and pits, swimming pools, pressure mats, water storage tanks, tunnels, bridge structures (prefabricated and cast-in-place), curbs and gutters, sidewalks, manholes, catch basins, water parks, dams. Hardened Concrete: higher compressive strength (with the same spread and air pore content) meets the requirements of ASTM C 494, chemical additives for concrete, Type A positive effect on all physical properties waterproof under hydrostatic pressure up to 7 bar, more than 100 psi (0.7 MPa). results in a completely waterproof mass. hard durable surfaces are resistant to sanding or chipping off surfaces are also very resistant to breaking and wear eliminates the formation of condensation in the pore matrix, resulting in excellent frost/thaw resistance Composition and Chemical Components AREXAL®-liquid X is an inorganic, copolymer, liquid additive for concrete, capable of chemically reacting with Portland cement, thereby improving the properties of concrete in all phases of its production, in the fresh state, during curing, and as finished concrete. Sealing Effects The most water-soluble components, calcium hydroxide and calcium-aluminum hydroxide (also referred to as free lime), are converted into the insoluble minerals, tricalcium silicate and tricalcium aluminum silicate. These insoluble minerals grow into the capillaries as very fine micro-crystals. Combined with the micro-pore structure, this results in a concrete mass that can withstand the penetration of water even under the highest pressures. Long-term Durability A large amount of macro-pores (found in normal concrete) are reduced in size to micro-pores in AREXAL®-liquid X concrete. About 3.8% of the mass of AREXAL®-liquid X concrete is occupied by these micro-pores. The micro-pores are hydrophobic and, although the system "breathes," condensation cannot form. This fact, combined with other physical properties of AREXAL®-liquid X concrete, results in a concrete matrix that is extremely durable even under the most adverse conditions. Advantages of AREXAL®-liquid X Fresh Concrete: contains no calcium chloride (or other chloride ions) abrasion resistant (no sanding or wear of the concrete even after more than 40 years) concrete with a lower spread is easier to mix, pump, and compact lower water/cement ratio very cohesive, therefore no voids and shrinkage cavities less water separation (bleeding) and therefore faster finish excellent workability due to better flow and smoothing properties easy to pump AREXAL®-liquid X reduces efflorescence and shows increased resistance to chloride ion penetration - it does not wear out like a coating (AASHTO T259-78) minimal separation during curing significantly reduces shrinkage behavior lower controlled development of hydration heat Corrosion Resistance Independent on-site investigations and laboratory tests show that AREXAL®-liquid X concrete protects reinforcing steel from corrosion and thus permanently prevents concrete spalling! Technical Data Packaging: 10l canister, 25 l canister, 200 l drum, 1000-l one-way container Shelf life: 3 years: protect from frost Dosage: 1 wt-% based on cement weight = 0.9 l/100 kg cement Macrocell Corrosion Test Macrocell corrosion test after 48 weeks of alternating cycles of 4 days immersed in 15% NaCI solution and 3 days dried at 38°C, showed the corrosion current of AREXAL®-liquid X concrete, according to half-cell potential, values of chloride ion content, all of which were below recognized corrosion threshold values. After forty-eight weeks the slabs were destroyed, and no corrosion on the reinforcing steel was discernible. Highway bridge study by Wiss, Janney, Elstner Associates, AG, February 1991, 1998. Installation AREXAL®-liquid X additive is added to the concrete on the construction site, in the ready-mix concrete plant, or in the precast concrete plant. Shake the canister very strongly so that settled crystalline in the container are completely mixed. Procedure Compare the delivery mix with the specification Stir or shake AREXAL®-liquid X in the canister. Continue mixing until a uniformly white consistency is achieved. Add AREXAL®-liquid X to the concrete mixer in the correct dosage (0.9 l / 100 KG cement) Mix AREXAL®-liquid X in the concrete mixer truck at the highest speed for 5 minutes Ensure that no additional mixing water is added. The concrete consistency must be set beforehand. Addition of water at this point will negate the beneficial effects of AREXAL®-liquid X and may void the warranty. AREXAL®-liquid X Specification AREXAL®-liquid X is added to the concrete at a dosage of 0.9 l per 100 kg cement. After adding AREXAL®-liquid X to the mixer of a ready-mix concrete truck, the concrete must be mixed for five minutes at maximum speed. The concrete mix is planned, processed, and cured in accordance with the valid DIN regulations of the respective country. Note: Normal procedures for processing concrete, as described in the ACI Manual of Concrete Practice, are to be followed when handling, placing, processing, and finishing AREXAL®-liquid X concrete. To achieve optimal mechanical properties, full compaction is necessary. Curing procedures, as described in the ACI Manual of Concrete Practice (latest edition), must also be followed. Warranty 25-year warranty on all concrete parts treated with AREXAL®-liquid X. The prerequisite for the warranty is proper application! Maintenance Normal maintenance required for concrete structures also applies to AREXAL®-liquid X concrete. Technical Support You will receive support at any time from one of our many PAN-TECH technical consultants on-site, including training and instruction. Or telephone consultation, please call us for this. Below is a summary of some of the tests conducted with AREXAL®-liquid X concrete. Permeability of liquid X concrete compared to normal concrete, F(c)= 4000 psi (28 N/mm2) modified CRD-C 48-55 testing procedure. Reduction in penetration depth by 84%; reduction in volume of penetrated water by 98%. Compressive strength, psi, ASTM C 39-Minimum 110% compared to reference concrete at 3-, 7-, 28-day samples Flexural tensile strength, psi, ASTM C 78 3, 7, 28-day samples all determined values greater than comparison samples (same air content and spread) Length change, ASTM C157 AREXAL®-liquid X approximately 25% less shrinkage Adhesion to reinforcing steel, psi, ASTM C 234 Minimum 105% at 28-day comparison tests Hydration heat, cal. /g., ASTM C186 AREXAL®-liquid X shows 13% less hydration heat Capillary water absorption, % AREXAL®-liquid X has 48% compared to control concrete at 12 mm immersion and 44% compared to control concrete at 140 mm immersion Frost-thaw resistance, AASHTO T161, 300 cycles 101.2% of control sample Resistance of concrete to chloride ion penetration, AASHTO T259-78/T260-78 75% greater than control sample Reduction in alkali-silica expansion reaction, %, ASTM C 441 47% less expansion than control sample

Permanent surface protection and up to 20cm deep penetrating, permanent impregnation (No chemicals or chlorides), lasting protection of your structure. AREXAL®-Pro-Beton strengthens concrete surfaces and protects them against severe wear, chlorides, and aggressive liquids. The protection is breathable, long-lasting, and acid-resistant. AREXAL®-Pro-Beton is a surface sealant and protective treatment for vulnerable concrete surfaces, such as industrial floors and parking garage levels. AREXAL®-Pro-Beton is also used for strengthening surfaces and binding dust during the grinding and polishing process of concrete floors. The result is a very resistant and scratch-proof surface. AREXAL®-Pro-Beton penetrates deeply into capillaries, microcracks, and pores. A chemical reaction between salts and minerals forms a very hard calcium silicate hydrate. Consequently, a crystalline structure forms, preventing water penetration but allowing the escape of vapors (diffusion). As the protection penetrates deeply into the concrete, it is resistant to external influences like abrasion and impacts. A treatment increases the durability (abrasion resistance) of new concrete by more than 35 percent and strengthens older, weather-exposed concrete, mortar, and self-leveling cement-based floor screeds. The treated surface becomes slightly water-repellent (hydrophobic) after the final treatment. For very damp materials, a pretreatment for deep action with other products from the AREXAL® series is recommended. Application Areas Concrete in harsh environments Roads, bridges, tunnels Parking lots and garages Water supply and sewage systems Industrial and material storage floors Marine environments Vehicle wash areas and workshops Cold storage rooms Agricultural silos Biogas plants Sawmills, paper mills Recycling and waste facilities Balconies, stairs Advantages easy, fast, and trouble-free to apply odorless environmentally friendly breathable acid-resistant UV-resistant Application AREXAL®-Pro-Beton is delivered ready for use and does not need to be mixed or diluted with other liquids. Shake the container before use. The surface to be treated must be free of dust, paint, or other coatings that could impair the material's absorbency. Repair damages or visible cracks (>1.0 mm) before treatment. Protect glass, aluminum, and polished or painted surfaces from etching. If splashes occur, immediately rinse the affected areas with water and if necessary, clean with an alkaline solution. The temperature during application and for the following 24 hours must be ≥ +5°C. Avoid direct sunlight during application. For easy processing, use a commercial low-pressure sprayer or a roller. Apply the product at least twice at intervals of 5–15 minutes between each application until complete saturation of the material is achieved. Note that the spray mist can spread very far during application and can damage glass surfaces. On horizontal concrete surfaces, AREXAL®-Pro-Beton can be poured out and spread with a rubber squeegee, brush, or mop. Avoid forming dry spots during treatment. Full saturation is achieved after about 20–30 minutes. Remove residues, as otherwise, shiny or white spots could form.

AREXAL®-PRO-Brick is a permanent impregnation penetrating up to 20 cm deep (No chemicals or chlorides) - lasting protection for your building AREXAL®-Pro-Brick strengthens brick surfaces and protects them against heavy wear as well as chlorides and aggressive liquids. The protection is vapor-permeable, durable, and acid-resistant. AREXAL®-Pro-Brick is a surface sealing and protective treatment for susceptible brick surfaces, such as house walls, cellars, wells, and stone walls of all kinds. AREXAL®-Pro-Brick is also used for consolidating surfaces and binding dust during the grinding and polishing of stone floors and walls. The result is a very resistant and scratch-proof surface. AREXAL®-Pro-Brick penetrates deeply into capillaries, micro-cracks, and pores. A chemical reaction between salts and minerals creates a very hard calcium silicate hydrate. Consequently, a crystalline structure forms, which prevents water penetration but allows the escape of vapors (diffusion). Since the protection penetrates deep into the concrete, it is insensitive to external influences like abrasion and impacts. A treatment increases the durability (abrasion resistance) of new stone floors and walls by more than 35 percent and strengthens older, weather-exposed stones and walls. The treated surface becomes slightly water-repellent (hydrophobic) with the final treatment. For very moist material, pretreatment with other products from the AREXAL® series is recommended. Applications Stones and walls Roads, bridges, tunnels Parking lots and garages Water supply and sewage systems Wine cellars Timbered houses Ports and surroundings Old vaults Agricultural silos Biogas plants Sawmills, paper mills Recycling and waste facilities Balconies, stairs Benefits Easy and straightforward to apply Odorless Environmentally friendly Vapor-permeable Acid-resistant Single treatment Longer lifespan Reduced maintenance Dust binding Easier cleaning Application: AREXAL®-Pro-Brick is delivered ready for use and does not need to be mixed or diluted with other liquids. Shake the container before use. The surface to be treated must be free of dust, paint, or other coatings that could impair the material's absorbency. Damage or visible cracks (>1.0 mm) should be repaired before treatment. Protect glass, aluminum, and polished or painted surfaces from etching. In case of splashes, immediately rinse the affected areas with water and, if necessary, clean with an alkaline solution. The temperature during application and for the following 24 hours must be ≥ +5°C. Avoid direct sunlight during application. For easy processing, use a standard low-pressure spray device or a roller. Apply the agent at least twice at intervals of 5–15 minutes between each application until complete saturation of the material is achieved. Note that the spray mist can spread very widely during application and can damage glass surfaces. On horizontal stone surfaces, AREXAL®-Pro-Brick can be poured out and spread with a squeegee, brush, or mop. Avoid the formation of dry spots during treatment. Complete saturation is achieved after about 20–30 minutes. Remove residues, as otherwise shiny or white spots could form. If you have further questions, please contact us! More Product Information Datasheet Download

Test us! You are looking for a solution to dry out your object or keep it dry forever and have thus become aware of the innovative PAN TECH products. You have browsed our website and are excited, but cannot imagine that the solution can be so simple. See for yourself. We have put together a test package for you. The package consists of 3 small product samples: AREXAL-Hydro-Concrete AREXAL-Hydro-Brick AREXAL-Hydro-Wood effective sustainable time-saving easy to handle all products are single-component lifelong protection of your building materials

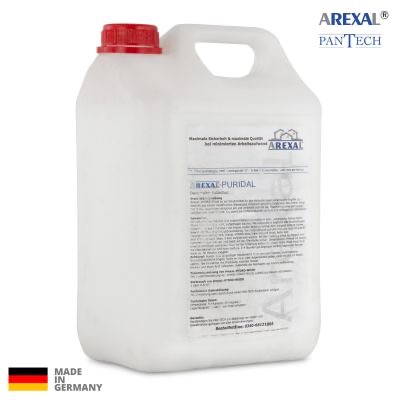

Impregnating liquid for solidifying mineral building materials and encapsulating building-damaging salts. Recommendation: Spray onto the masonry before beginning waterproofing Product Description PURIDAL is a low-viscosity liquid based on soluble alkali silicate compounds with very good capillary penetration ability. Certificate of Testing Effects and strength increases by treatment with PURIDAL Testing Institute for Building Materials Dr. Günther Böttcher 1225 A 1225 B Application Areas PURIDAL is used for solidifying and stabilizing mineral building materials and mortars such as concrete, masonry bricks, plaster, and natural stone. It encapsulates and passivates building-damaging salts, e.g., sulfates, nitrates, chlorides, etc. Mode of Action/Properties: The applied PURIDAL converts the free lime in the building material into calcium silicate, thereby increasing the strength of the building material. It prevents the transport of building-damaging salts to the surface of the building material, by encapsulating and passivating the salts. PURIDAL inhibits excessive water absorption capacity in plaster substrates and does not affect the water vapor diffusion capability of the building material. AREXAL-PURIDAL: does not attack structural steel is non-flammable does not decompose increases fire and heat resistance acts to strengthen wood and repel termites impregnated surfaces are lead-free Technical Data Material Base low-viscosity, water-soluble alkali silicates Appearance transparent Density 1.24kg/dm3 pH Value 12.5 (highly alkaline)2 Consumption depends on the absorbency of the building material Guideline: 0.3-0.5 Ltr./m2 Increase in Compressive Strength up to 60% Thickness cm Lambda W / mK Water Vapor Diffusion µ 0.2 0.001 150 Storage Frost-free Shelf Life 1 year in unopened containers Delivery Form in 10-liter and 25-liter plastic containers Application Instructions: For solidifying surfaces and encapsulating building-damaging salts, PURIDAL is applied to dry, or possibly slightly moist, building materials using spraying or flooding methods. Depending on the required penetration depth, multiple applications may be necessary, working wet in wet. For solidifying foundations, masonry, concrete, etc., PURIDAL is introduced via drill holes using soaking or injection methods. (see the Injection information sheet) Please note: For subsequent systems (e.g., bonding bridge, adhesive slurry) to adhere properly on surfaces treated with PURIDAL, they must be applied wet in wet without waiting. Excess PURIDAL can form a white haze on the surface. Protect glass and anodized parts. Clean tools and injection machines with water. Safety Advice: Due to its alkalinity, PURIDAL is corrosive. The protective measures ordered by the chemical professional association must be strictly followed. Work with gloves and safety glasses. Avoid skin contact with the product. To better protect the hands, apply a protective skin cream. Immediately rinse material splashes on the skin or in the eye with plenty of water and then seek medical attention immediately. For further questions, feel free to call us!

Fast-setting mortar for extensive sealing of water ingress Product Description AREXAL® - Express dicht is a factory-mixed, waterproof fast-setting mortar based on cement in accordance with DIN 18557. Mode of Action/Properties: AREXAL® - Express dicht swells under water load (self-sealing effect) and adheres extremely well to mineral substrates. It seals water ingress immediately and permanently and does not attack construction steel (chloride-free). Application AREXAL® - Express dicht is applied dry, by rubbing vigorously into the substrate with the flat hand (definitely use rubber gloves). This process may need to be repeated. Special Features AREXAL® - Express dicht is a rigid sealing product. Cracks, settlements, deformations, or movements of the structure that occur subsequently can lead to leaks. The material and ambient temperature must not exceed +30°C. An actual post-treatment is not required. Cleaning and Disposal Cleaning tools with clean water. Delivery containers, material residues, and also mixing vessels should be disposed of in accordance with the prescribed official regulations. Disposal key in the hardened state: LAGA-No. 314 09 EWC-NR. 17 01 01 Safety Advice Please wear protective clothing, goggles, and gloves when working. Do not smoke, drink, or eat during strong dust development! In case of skin contact and splashes into the eyes, rinse immediately with clean water for at least 15 minutes. It is advisable to keep an eye wash bottle with a sterile solution ready to thoroughly rinse the eyes. Then consult an eye doctor immediately. Please observe the safety data sheets and the regulations of the professional associations regarding the handling of cement-bound materials. Technical Data Base Cement Appearance grey Bulk Density 1.55 kg/dm2 Beginning of Setting upon contact with water End of Setting approx. 40 sec Packaging Form 15-kg bucket Shelf Life up to 6 months with proper storage Storage Storage in the unopened original packaging, in dry rooms, and in accordance with WHG §19. Storage temperature not below +5°C Packaging Form in 10-litre and 25-litre plastic containers Processing Instructions The substrate must be solid and free of substances that could impair bonding. There must be no movements in the substrate that is to be sealed. Further information is available upon request! Additional Product Information Data Sheet Download Safety Data Sheet Download

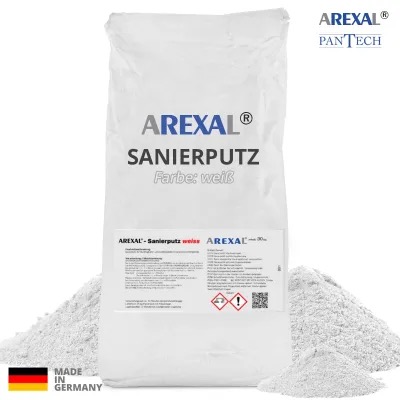

Dry mortar for plastering salt-laden, moist interior and exterior walls Binds the salts in the wall, no efflorescence anymore, no sacrificial plaster! AREXAL® restoration plaster white is a ready-to-use, white dry mortar according to DIN 18557, mortar group PII according to DIN 18550, for the preparation of a pore-hydrophobic, particularly diffusion-capable plaster for the renovation of old buildings. Application areas AREXAL® restoration plaster white is used for the permanent plastering of moist, mostly salt-laden masonry, and is therefore ideally used for the restoration of damp cellars, vaults, and historic building fabric. It achieves dry surfaces and prevents efflorescence and plaster spalling. AREXAL® restoration plaster white, with its lime content, is suitable for plaster restoration in the area of monument conservation. It is preferably used as an interior restoration plaster in rooms heavily burdened by moisture, and is also optimally suitable in both old and new construction. It balances the room climate and prevents condensation on the plaster surface. It transforms cellar mustiness into living room quality and keeps your walls dry. AREXAL® restoration plaster white is an essential accompanying measure to any type of horizontal barrier. Mode of action/Properties: AREXAL® restoration plaster white is a lime-cement plaster (mortar group PII) with low susceptibility to cracking and a favorable strength ratio is a hydrophobic pore plaster with particularly high water vapor diffusion is almost capillary inactive, thus does not transport water or salts thereby creates a salt-free and dry surface (dew point relocation) inward, prevents condensation) permanently prevents salt efflorescence, color and plaster spalling, is absolutely frost and salt resistant, promotes the drying of moist, salt-laden structures is not a dehumidifying plaster is very suitable for machine processing (plaster machine). Certificates Test report No. 958/94 Dr. Böttcher/ Hamburg, Laboratory for Building Materials Requirements Fresh Mortar Consistency 15.3 17.0+0.5cm Bulk Density 1.36 kg/l none Air Void Content 25.5 Vol% >25 Vol% Water Retention Capacity 97.75% 85% Workability 1.7 cm < 3 cm Hardened Mortar Bulk Density 1.33 kg/l 1.40 kg/l Water Vapor Diffusion 9.5 < 12 Compressive Strength 4.9N/mm2 1.5-5N/mm2 Ratio: Compressive/Bending Strength 2.3 < 3.0 Capillary Water Absorption W24 0.8kg/m2 0.3 kg/m2 Water Penetration Depth after 24 Hours 2 mm < 5 mm Porosity 49.8 Vol% > 40Vol% Salt Resistance passed passed Storage dry, on pallets or wooden racks Shelf Life max. 6 months Delivery Form 30 kg bag Quality Monitoring External monitoring possible; self-monitoring by IPA laboratory Technical Data Material Base mineral binders, quartz sands Appearance white Processing Time 25-40 minutes Processing Temperature not below 5 degrees (material temperature) Consumption approx 13 kg/m2 per cm of plaster thickness Minimum Plaster Thickness 20 mm Thickness cm Lambda W/mK Water Vapor Diffusion 2.0 0.350 8.8 3.0 0.350 8.8 4.0 0.350 8.8 Processing Preliminary Treatment Remove the existing plaster or bond-disrupting substances down to the raw masonry (up to twice the wall thickness, at least 50 cm beyond the visible moisture limit). Completely eliminate gypsum, wood remnants, and similar foreign materials. Scrape out decayed joint networks to a depth of 2 cm and thoroughly clean the surface (dry blasting) or sweep with a stiff broom. Promptly remove the construction debris while it's still dry. Salt Treatment Even with heavily salt-laden building materials, it may be possible to forego any salt treatment if ArexA - pore base plaster is used as a buffer zone. However, a single salt treatment with ArexA-Pro Concrete or Pro Brick is recommended despite the buffer zone. to consolidate the substrate, to encapsulate most of the harmful salts in the substrate, to increase the lifespan of the pore base plaster and thus the entire restoration system, and to ensure its full diffusion capability over this period. Consumption: at least 0.2 l/m2 per soaking Spritzbewurf: The spritzbewurf is applied fresh on fresh to the substrate soaked with AREXAL®- Pro Concrete or Brick (waiting time max. 1 hour). Net-like application is usually done with AREXAL®-restoration plaster white (inside and outside); To improve the adhesion of all subsequent ArexA - plaster systems, the surface of the bonding bridge should be left spray-rough. The waiting time for the subsequent plaster system is at least 4 hours, usually 2–4 days. If the surface is dry, it should be well pre-moistened. Base or Leveling Plaster Uneven plaster bases are leveled with AREXAL®-restoration plaster white. For large irregularities and fissures (20 mm to 60 mm), work in multiple layers. In principle, AREXAL®-restoration plaster white can also act as a leveling plaster, but must not exceed 2 cm plaster thickness (WTA). Only AREXAL® - pore base plaster is suitable as a salt buffer zone, where the minimum layer thickness is 10 mm. Intermediate layers and plaster surface should be left rough. Before applying further layers or the subsequent restoration plaster, the waiting time should be at least 4 hours. If the surface is dry, it should again be pre-moistened. Restoration Plaster Mixing instructions: Pre-place 5 l of clean, cold water in a mixing bucket, sprinkle in the contents of the bag (30 kg), mix intensively and homogeneously in a suitable mixer. Water consumption with a suitable plaster machine (e.g., G4) is about 220 l/hr. Mixing Time Forced-action mixer about 5 minutes. Free-fall mixers are poorly suited and require significantly longer mixing times. To avoid mixing errors, prepare at least one full bag content. AREXAL® restoration plaster white is usually applied 2–4 days later. For base plaster thicknesses over 2 cm, an additional waiting time of 1 day should be considered (WTA). The restoration plaster mortar is vigorously hand-thrown or processed mechanically. A minimum layer thickness of 2 cm is mandatory. Exceptions over AREXAL® - pore base plaster, 1.5 cm plaster thickness is sufficient as a finishing plaster over AREXAL® - barrier plaster, 1 cm plaster thickness is sufficient AREXAL® restoration plaster white is usually applied in a single layer. High levels of moisture in the substrate or interior restoration of heavily moisture-laden rooms require a two-layer application (minimum plaster thickness per layer 1 cm), as the functionality only begins when the plaster has dried out once. Intermediate layers should be left rough, as well as the plaster surface if finished with AREXAL® - fine plaster. Otherwise, after leveling with a straight edge (aluminum) and after setting, the surface is rubbed with a board, preferably without adding water. The waiting time before applying further layers or a subsequent AREXAL® restoration plaster is at least 4 hours. Notes & Consumption Quantities AREXAL® restoration plaster white is processed by hand or mechanically according to the rules of craftsmanship and guidelines for plaster according to DIN 18550; For execution and aftercare of ArexA restoration plaster white, the guidelines for plaster according to DIN 18550 apply: Avoid heat, frost, strong wind during and up to 24 hours after execution, and ensure sufficiently long moistening; For capillary rising dampness, the installation of a horizontal barrier (chemical or mechanical) is recommended as an accompanying measure. Protect glass, wood, built-in parts from material contamination Clean contaminated parts immediately with plenty of water Cleaning of all tools and equipment should also be done immediately after use with water Disposal of dried residues through household waste landfill 1 bag (30Kg) covers approx. 2.3sqm at 1cm application thickness. Safety Advice AREXAL® restoration plaster white is not subject to the Hazardous Substances Regulation (GefStoffV). However, in a workable state, AREXAL® restoration plaster white is "corrosive" due to its alkalinity. The prescribed protective measures and accident prevention regulations of the Chemical Professional Association must be strictly followed. In case of contact with eyes, rinse thoroughly with water and consult a doctor. In case of contact with skin, wash immediately with plenty of water. Wear suitable protective clothing, gloves, and eye/face protection during work. Due to its alkaline reaction with water, larger amounts should not enter groundwater or surface water. Further information is available upon request!

Despite flexible sealing, still diffusion-open and breathable Product Description This product is a liquid plastic that can be used pure with the AREXAL® - Roof and Facade Slurry. From the listed mineral products, a permanently elastic and flexible building material with comprehensive applications is formed. Applications AREXAL®- Additive Component (liquid) is used for flexible surface sealing of buildings in interior and exterior areas against ground moisture, non-pressing surface and seepage water, especially on tension-prone substrates. Flat roofs, pipe penetrations, cable entries, balcony and terrace sealing, roof drains, wall connections, and all movable building materials. AREXAL®- Additive Component (liquid) is suitable for sealing exterior basement walls made of concrete and masonry, retaining walls, concrete floor slabs, balconies, and terraces, as well as for bonding flexible joint tapes. The product is ideally suited for permanently sealing flat roofs, for which the use of AREXAL®- Roof and Facade Slurry is necessary! As a substrate for plasters of the mortar groups PI, PH, and PHI (lime, lime-cement, and cement plasters) as well as for tiles and slabs, the AREXAL®-Additive Component (liquid) can also be used.The AREXAL®-Additive Component (liquid) also scores with its diffusion openness against water vapor pressure and acts simultaneously as a diffusion barrier against carbon dioxide (carbonation brake).The AREXAL®-Additive Component (liquid) also offers convincing adhesion to cleaned concrete surfaces. It ensures water impermeability and meets the requirements of the WHG §19 coating against transformer and light heating oil. Properties has high adhesive strength and cures without shrinkage and cracking can bridge cracks due to its bending and stretching capability AREXAL® - Additive Component (liquid) is tested and monitored according to DIN is impermeable to water is suitable as a WHG §19 coating against transformer and light heating oil Technical Data Material Base Additives for AREXAL®- Slurries (Roof/Wall/Floor) Powder Liquid Component Color white/milky Mixing Ratio 7 parts by weight 3 parts by weight Bulk Weight / Density approx. 1.3 kg/dm³ approx. 1.1 kg/dm³ Adhesive Tensile Strength on Concrete 28 days -1.3 kg/mm² Elongation at Break up to 30% Crack Bridging up to 0.6 mm (in case of crack formation) Adhesive Tensile Strength up to 1.25 N/mm² Water Vapor Permeability (μ-value) approx. 300 Processing Time approx. 1 hour (temperature dependent) Water Tightness (1.5 bar) passed Consumption at least 2.5 kg/m² depending on the application; multiple applications! Application Thickness at least 1.5 mm Shelf Life approx. 6 months Storage dry and frost-free Delivery Form 9 kg plastic canister Special Notes AREXAL®-Additive Component (liquid) is a liquid product. Skin formation in the work vessel can be avoided by covering the vessel. Mixing Instructions AREXAL®-crystalline Waterproofing Slurry mix thoroughly. It is recommended to use a mixing device. If the consistency is not sufficient, add a little more AREXAL®-Additive Component (liquid). Application Apply AREXAL®-Additive Component (liquid) in at least 2 stages with consistent consistency using a brush or by rolling with a paint roller. Maintain the required layer thickness at corners and edges. Each additional application is carried out after sufficient curing (earliest after about 6 hours, temperature dependent). For bonding flexible joint tapes, first pre-coat with AREXAL®-Additive Component (liquid). Insert the joint tape and repaint the lateral fabric. Mix the prepared sealing slurry within 1 hour, AREXAL®-Additive Component (liquid) can be removed from the tools with water when fresh. Protect fresh coatings from sun, cold, and wind and keep moist if necessary. Protect finished surfaces from mechanical damage; backfill excavations in accordance with VOB regulations. Clean the tools with clean water. Delivery containers and material residues also. Mixing containers must be disposed of in accordance with the legally prescribed disposal. Disposal key in the hardened state: LGA No. 314 09 EWC No. 17 01 01 Processing Clean the substrate of dust and loose parts; otherwise, VOB regulations apply Substrates of fine-pored concrete B15 must be free of gravel nests, cracks, burrs, and edges Gravel nests in the concrete must be closed with AREXAL®-crystalline sealing slurry before surface sealing Chisel out metal parts 1.5 cm deep; the substrate must be pre-moistened capillary-saturated; remove standing water (surface matte moist) Masonry with joints must be plastered with AREXAL®-crystalline sealing slurry with masonry made of calcium silicate or concrete hollow blocks fully jointed with cement mortar, ArexA-Elastic slurry can be applied directly. Do not process at temperatures below +5°C, in case of expected frost or on frozen substrates each additional application is carried out after sufficient curing (earliest after about 6 hours, temperature dependent) prevent intensive, direct sunlight e.g., in midsummer or strong drying by wind during application (e.g., by hanging up tarps) during the processing time and 72 hours afterwards, the substrate and material temperature must be at least +5°C and a maximum of +30°C, the relative humidity should not exceed 80% the rules for processing cement-bound building materials apply Safety Instructions Please wear protective clothing, safety goggles, and gloves when working. Avoid creating excessive dust (cement dust)! Do not smoke, drink, or eat during processing. In case of skin contact and splashes into the eyes, immediately rinse with clean water for at least 15 minutes. It is recommended to have an eye wash bottle with a sterile solution ready to thoroughly rinse the eyes. Then consult an ophthalmologist immediately. Please refer to the safety data sheets and the regulations of the professional associations regarding the handling of cement-bound materials.

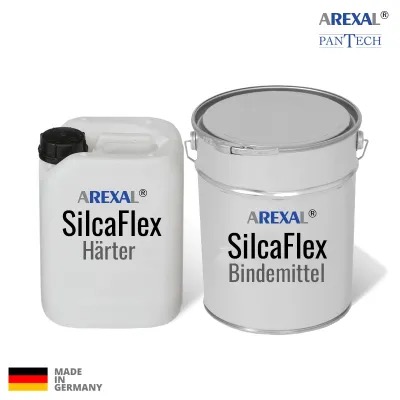

AREXAL® SilcaFlex 2K AREXAL® - SilcaFlex 2K ist ein zweikomponentiges, lösungsmittelfreies Beschichtungssystem auf Polymer-/Silikatbasis bestehend aus Bindemittel- und Härterkomponente. Die Beschichtung kann elektrostatisch ableitfähig ausgeführt werden. Anwendungsgebiete Anlagen mit Dichtflächen gem. § 62 WHG zum Umgang mit flüssigen wassergefährdenden Stoffen. Kanalbauwerk Abwassertechnische Anlagen (z.B. Rohre, Schächte, Faultürme, Fließrinne) Auffangflächen von LAU- und HBV-Anlagen Abscheideranlagen für Fette und Leichtflüssigkeiten Auffangwannen für Chemikalien Anlagen mit biogener Schwefelsäurebelastung Biogasanlagen Eigenschaften Beständig gegen Abwasser von pH 0 -14, Chromsäure 35%, Heizöle, Lösemittel, Kraftstoffe, Öle und Fette Lösungsmittelfrei, wasserdampfdiffusionsfähig, keine VOC Bestandteile Hohe Festigkeit im ausgehärteten Zustand Beständig gegen biogene Schwefelsäure, verhindert Betonkorrosion Hitzebeständig bis 140°C Emulgiert nicht mit Wasser, sofort wasserabweisend nach dem Auftragen Vollständige Aushärtung auch unter Wasser Rissüberbrückend bis 0,1 mm Verarbeitung Das angemischte Beschichtungsmaterial ist im Streich- oder Spritzverfahren auf den vorbereiteten Untergrund in einer Gesamtstärke von mind. 2 mm aufzutragen. Erster Anstrich: Dünner Voranstrich, intensiv in den Untergrund einarbeiten, gefolgt von 1 mm Schichtstärke. Nach 6-24 Std. kann der Deckanstrich aufgetragen werden. Die Untergrundtemperatur während der Verarbeitung und 72 Stunden danach sollte mindestens +10°C und höchstens +25°C betragen, die relative Luftfeuchtigkeit sollte 80% nicht überschreiten. Bei ableitfähiger Beschichtung wird das IPA Leitband auf dem ausgehärteten 1. Auftrag befestigt und anschließend der 2. Anstrich ausgeführt. Reinigung und Entsorgung: Arbeitsgeräte mit Wasser vorgereinigt. Materialreste und Liefergebinde sind einer geordneten Entsorgung zuzuführen. Sicherheitshinweise Beim Arbeiten Schutzbekleidung, Schutzbrille und Schutzhandschuhe tragen. Starke Staubentwicklung vermeiden. Während der Verarbeitung nicht rauchen, essen oder trinken. Bei Hautkontakt und Spritzer in die Augen sofort mindestens 15 Minuten mit sauberem Wasser ausspülen. Es empfiehlt sich eine Augenspülflasche mit steriler Lösung bereit zu halten. Danach sofort einen Augenarzt konsultieren. Beachten Sie die Sicherheitsdatenblätter und die Bestimmungen der Berufsgenossenschaften über den Umgang mit polymer- und silikatgebundenen Stoffen. PAN-TECH Vertriebsgesellschaft mbH Lessingstraße 27, 06844 Dessau Tel. +49 340 6612 1806 E-Mail: info@pan-tech.eu www.pan-tech.eu EAN 0098931308784 - AREXAL® - SilcaFlex 2K - Härter EAN 0098931308791 - AREXAL® - SilcaFlex 2K - Bindemittel
